Plastic Flowmeters - PMBC

CÔNG TY TNHH GIẢI PHÁP KỸ THUẬT ATZ
Thiết Bị Đo Lưu Lượng

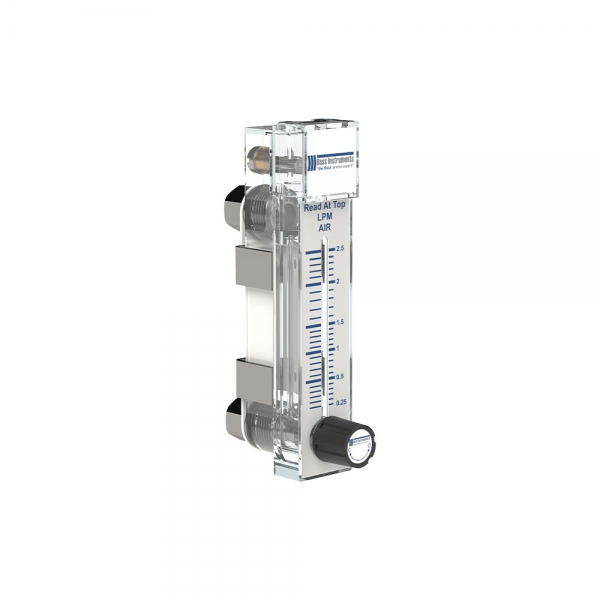

Plastic Flowmeters - PMBC

  • Liên hệ 093 104 2303
  • Bass Instruments, PMBC series Miniature Type Acrylic Flowmeters are low cost and small size flowmeters designed to measure the instantaneous flow of air, nitrogen and water. You can fix the flow to the desired amount with the standard adjustment valve. The connection parts are AISI316 as standart.

Technical Specifications
Measurement Water 0.6...6l/h-25...250l/h
Measurement Air 0.05...0.5Nl/min-10...100Nl/min
Connection G 1/4" or NPT
Body-Connections SS316
Temperature -10...60°C
Pressure Bar max.
Sensitivity <±3% T.S.
Application Air, Nitrogen, Water
Features
Easy to Install
Low Cost
Easy to Read Scale
